$699.95
$839.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

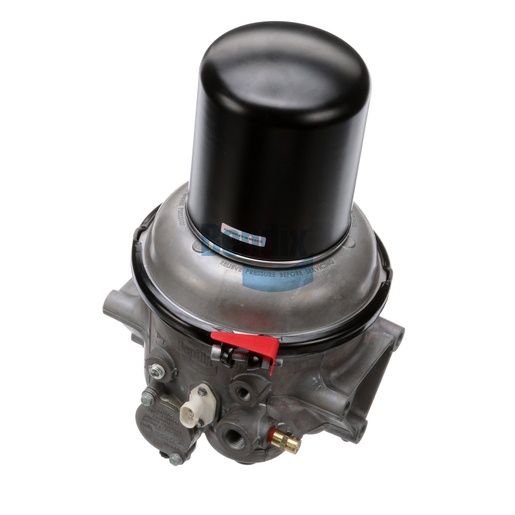

The AD-9si Air Dryer from Bendix is a critical component for maintaining the quality of air in your vehicle's compressed air system. This advanced air dryer is designed to remove moisture and contaminants, ensuring that your braking system operates effectively and reliably. With its unique purge cycle and robust construction, it provides consistent performance under various operating conditions. The dryer is easy to install and maintain, which is essential for minimizing downtime in fleet operations. Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring you receive high-quality components that enhance the performance and safety of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Body Mounting
1/2-13 UNC-2B (3x) - Both Sides
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/4-18 NPT (Plugged)
Cut-in Pressure
105 PSI
Heater / Thermostat Rating
12V / 75W
Cut-out Pressure
130 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
235.0 mm (9.25 in)
Width
238.0 mm (9.37 in)
Clamp Band Angle (CW from SUP)
335°
Height
382.0 mm (15.04 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Type
Non-Adjustable
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Governor Included
Yes
Turbo Cut-off Function
Yes
Weight
17.75 lb
