DESCRIPTION

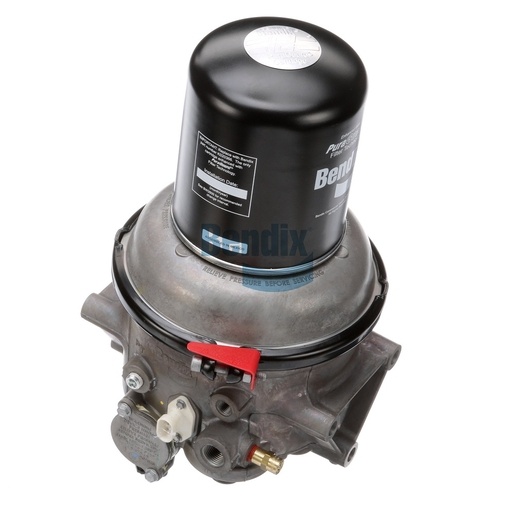

The Air Dryer from Bendix is a crucial component designed to maintain the performance and reliability of your vehicle's air brake system. This advanced air dryer features a stand-alone design equipped with a PuraGuard coalescing cartridge, effectively removing moisture and contaminants from the compressed air supply. With a cut-in pressure of 105 PSI and a cut-out pressure of 130 PSI, this air dryer ensures optimal air quality, promoting the longevity of your braking system. The durable construction and non-adjustable governor type make this component ideal for heavy-duty applications, providing consistent performance even in the harshest environments. The air dryer's ability to operate effectively in temperatures as low as -40°F ensures that your vehicle remains reliable, regardless of weather conditions. For sourcing authentic Bendix OEM parts, Source One Parts Center is the preferred choice, guaranteeing quality and performance that you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Body Mounting
1/2-13 UNC-2B (3x) - Both Sides
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/4-18 NPT (Plugged)
Cut-in Pressure
105 PSI
Heater / Thermostat Rating
12V / 75W
Cut-out Pressure
130 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
235.0 mm (9.25 in)
Width
238.0 mm (9.37 in)
Clamp Band Angle (CW from SUP)
335°
Height
382.0 mm (15.04 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Type
Non-Adjustable
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Governor Included
Yes
Turbo Cut-off Function
Yes
Weight
17.6 lb
