DESCRIPTION

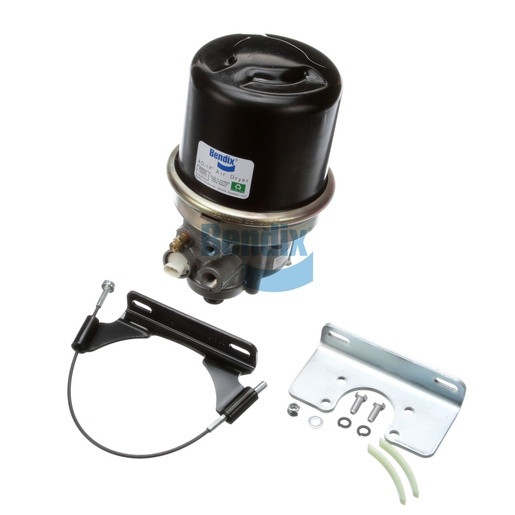

The Air Dryer is an essential component of the air treatment system in commercial vehicles, effectively removing moisture and contaminants from the air supply. This ensures that the air system operates efficiently, preventing issues such as brake freeze-up and system corrosion. With a robust design and advanced filtration technology, this air dryer guarantees optimal performance even under the most demanding conditions. Its compatibility with various Bendix air systems makes it a versatile choice for fleet maintenance. By incorporating this vital part, fleet operators can significantly extend the life of their air brake systems, ensuring safe and reliable vehicle operation. For genuine Bendix OEM parts, Source One Parts Center is your go-to destination, delivering quality you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Width
213.0 mm (8.39 in)
Length
221.0 mm (8.7 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.75 lb
