5000985

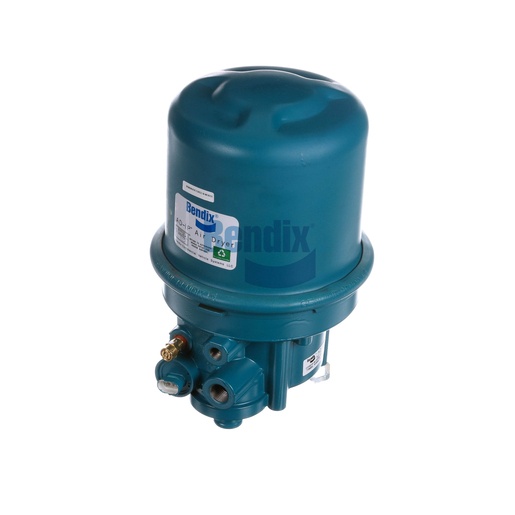

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a crucial component in air treatment systems, designed to effectively remove moisture and contaminants from compressed air in commercial vehicles. This dryer plays a vital role in maintaining brake performance and prolonging the lifespan of air brake components. Built to handle demanding applications, it operates efficiently in temperatures ranging from -40 °F to 150 °F, ensuring reliable performance under varying conditions. The air dryer's robust design and multiple ports allow for straightforward installation and integration into existing systems. For those seeking genuine Bendix products, Source One Parts Center is the best option for authentic OEM components that keep your vehicle's air systems functioning optimally.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.09 lb
