DESCRIPTION

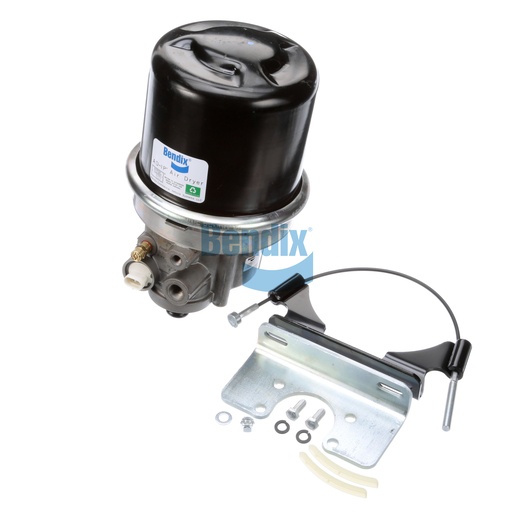

Introducing the Bendix Air Dryer, a crucial component in the air treatment system of your commercial vehicle. This stand-alone air dryer is designed to efficiently remove moisture and contaminants from the compressed air system, ensuring optimal performance and longevity of your vehicle's air brakes and other pneumatic systems. With a robust design that can withstand extreme temperatures ranging from -40°F to 160°F, it’s built to operate in the harshest environments. The air dryer's features include a standard purge volume, a hard seat purge valve type, and a heater rating of 12V/90W, making it a reliable choice for any fleet. The unit also boasts a 360-degree viewer for easy inspection and installation guidance. Ensuring that your air system remains dry is vital for preventing brake failure and enhancing safety on the road. Trust Source One Parts Center for your purchase of genuine Bendix OEM parts, where quality meets reliability for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.75 lb
