DESCRIPTION

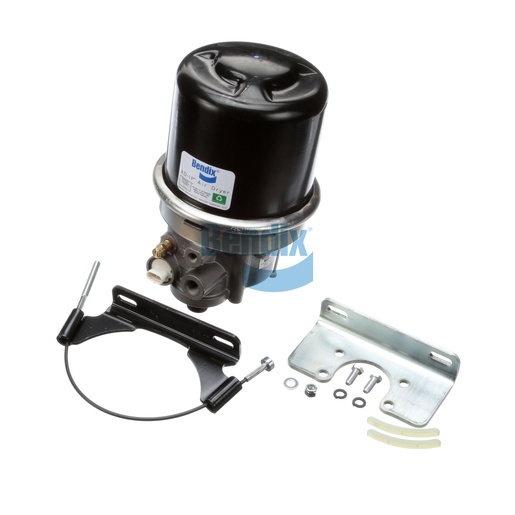

The Air Dryer is a fundamental component in maintaining the efficiency and reliability of your vehicle's air brake system. This stand-alone air dryer, manufactured in Mexico, effectively removes moisture and contaminants from the compressed air, preventing damage to crucial components and ensuring optimal brake performance. Weighing 12.6 kg (27.82 lb), this dryer is built to handle the demanding environments typical of commercial trucking. Its advanced design includes a standard purge valve and a robust mounting system, making installation straightforward and effective. By regularly replacing your air dryer with a genuine Bendix part, you can enhance the longevity of your braking system and improve overall vehicle reliability. For the best selection of Bendix OEM parts, trust Source One Parts Center to deliver quality and service you can rely on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
27.82 lb
