DESCRIPTION

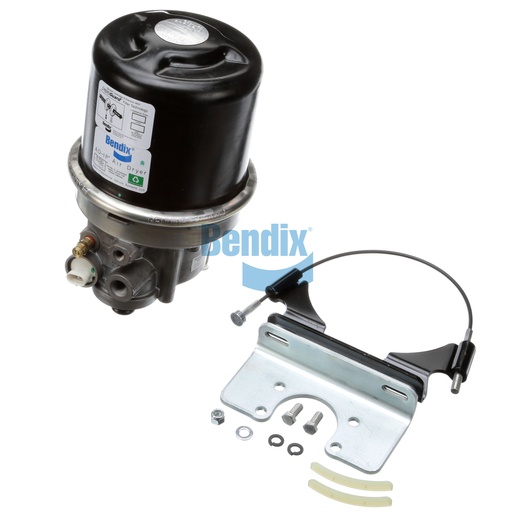

The Air Dryer plays a pivotal role in maintaining the efficiency and reliability of your vehicle's air brake system. By removing moisture and contaminants from the compressed air, it prevents corrosion and ensures optimal performance of the braking components. This unit features a robust design capable of withstanding extreme temperatures, ensuring consistent operation in diverse environments. With its easy installation and maintenance, the air dryer helps reduce downtime and increases the longevity of your braking system. Investing in a high-quality air dryer is essential for fleet operators focused on safety and performance. At Source One Parts Center, we provide genuine Bendix OEM parts, ensuring you get the best for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
27.56 lb
