FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

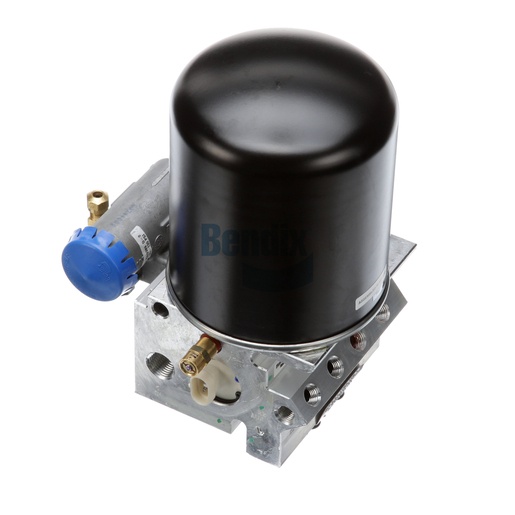

The Bendix Air Dryer is an essential component of your vehicle's air treatment system, designed to remove moisture and contaminants from compressed air, ensuring optimal performance of the air brake system. This unit features advanced technology that provides efficient air drying, helping to prevent ice formation in cold weather and ensuring consistent brake performance. Engineered for durability, it operates effectively in temperatures ranging from -40°F to 160°F. Its compact design allows for straightforward installation, while the included governor optimizes air pressure management. This air dryer is built to meet or exceed OEM specifications, providing reliable operation under demanding conditions. For reliable Bendix components, Source One Parts Center is the best place to purchase genuine OEM parts that ensure your vehicle operates smoothly and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
160.0 mm (6.3 in)
Pressure Protection Valve Configuration
2 in Series
Width
217.0 mm (8.54 in)
Height
286.0 mm (11.26 in)
AUX 1 Delivery Opening Pressure
55 PSI
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
14.95 lb
