5011075

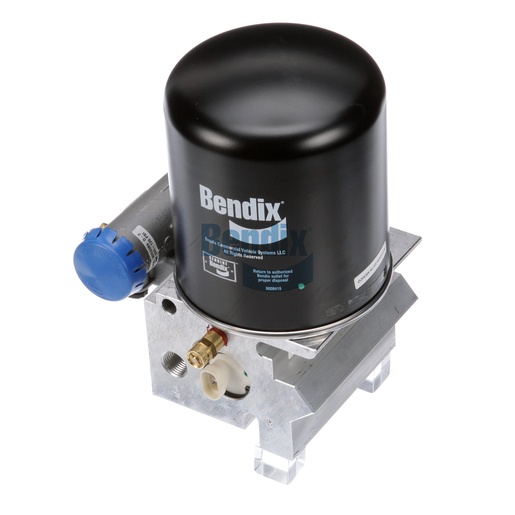

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component for maintaining clean and dry air in your vehicle’s air brake system. This unit effectively removes moisture and contaminants, preventing damage to critical braking components and ensuring reliable performance. Weighing 11.8 kg, it is designed for heavy-duty applications, making it a robust solution for fleet operators. The air dryer's efficiency directly contributes to the longevity of your vehicle's braking system, enhancing overall safety and reliability on the road. For top-quality Bendix parts like this air dryer, Source One Parts Center is your trusted supplier for genuine OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
PRI Delivery Port 21
1/4-18 NPT x 3/8 PTC (Straight)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (Straight)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Width
159.0 mm (6.26 in)
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Length
214.0 mm (8.43 in)
Height
286.7 mm (11.29 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
25.99 lb
