DESCRIPTION

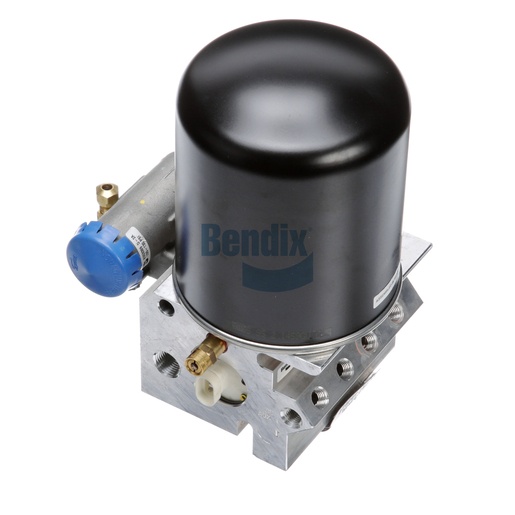

The Bendix Air Dryer is an integral part of your vehicle's air treatment system, designed to remove moisture and contaminants from compressed air, thereby enhancing the overall efficiency of braking and other pneumatic systems. This air dryer features advanced technology that allows it to operate effectively in a temperature range from -40°F to 160°F, making it reliable in extreme conditions. With a robust construction and efficient purge valve system, it ensures optimal air quality, which is essential for maintaining the integrity of your braking system and other air-operated components. The air dryer is easy to install and maintain, providing a hassle-free solution for fleet operators. By investing in this air dryer, you can expect reduced downtime and lower maintenance costs over the life of your vehicle. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive the highest quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Length
158.0 mm (6.22 in)
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Width
207.0 mm (8.15 in)
Height
286.0 mm (11.26 in)
AUX 1 Delivery Opening Pressure
55 PSI
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
14.62 lb
