$809.95
$971.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

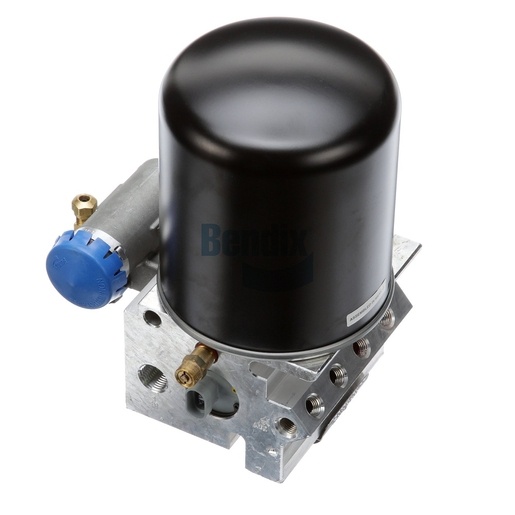

The Bendix Air Dryer is a vital component for ensuring clean, dry air in your commercial vehicle's braking system. Designed as a stand-alone unit, it effectively removes moisture and contaminants from the compressed air, preventing corrosion and prolonging the life of your braking system. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, this air dryer ensures optimal performance by managing air quality under various operating conditions. The purge valve type is a hard seat design, enhancing reliability and efficiency. This dryer is capable of operating in extreme temperatures, from -40°F to 160°F, making it ideal for diverse environments. For those in the market for genuine Bendix OEM parts, Source One Parts Center stands out as the best place to make your purchase, providing assurance of quality and lasting performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-in Pressure
110 PSI
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.08 lb
