DESCRIPTION

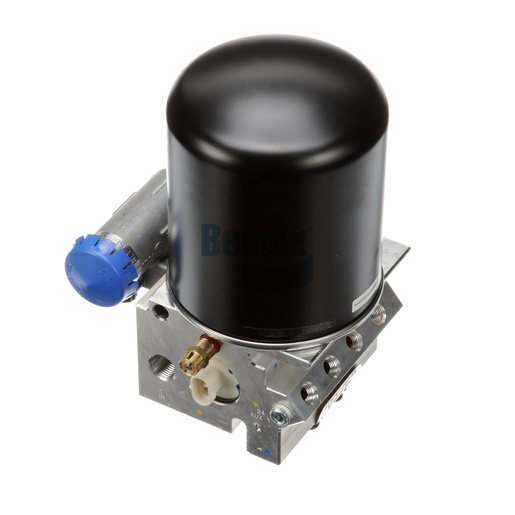

The Air Dryer is an indispensable part of the air brake system, designed to remove moisture and contaminants from the compressed air supply, ensuring optimal braking performance. This unit operates under various conditions, with a temperature range from -40°F to 160°F, making it suitable for heavy-duty applications. Its robust construction includes a non-adjustable governor and a hard seat purge valve, enhancing reliability and performance. The Air Dryer is easy to install and maintain, providing a hassle-free solution to keeping your braking system clean and functional. A well-maintained air dryer is vital for preventing moisture-related issues that can lead to costly repairs and downtime. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing quality products that keep your commercial vehicles performing at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Length
158.0 mm (6.22 in)
Maximum Inlet Temperature
160 °F (71 °C)
Width
199.0 mm (7.83 in)
Height
286.0 mm (11.26 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
14.99 lb
