DESCRIPTION

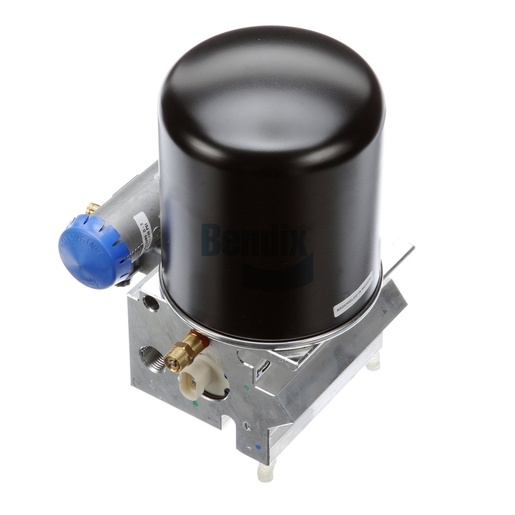

The Air Dryer from Bendix is a vital component in maintaining the air system of your commercial vehicle, ensuring clean, dry air for optimal brake performance. This stand-alone air dryer is designed to effectively remove moisture and contaminants, preventing damage to the braking system and enhancing overall reliability. With a cartridge type that is standard, it offers easy replacement and maintenance. Its operational parameters, including a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, ensure efficient air delivery for various applications. Built to withstand extreme temperatures, this air dryer operates effectively in conditions ranging from -40°F to 160°F. For fleet operators looking to enhance their air system reliability, Source One Parts Center is the trusted source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
PRI Delivery Port 21
1/4-18 NPT x 3/8 PTC (Straight)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (Straight)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Width
159.0 mm (6.26 in)
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Length
214.0 mm (8.43 in)
Height
285.8 mm (11.25 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
14.99 lb
