DESCRIPTION

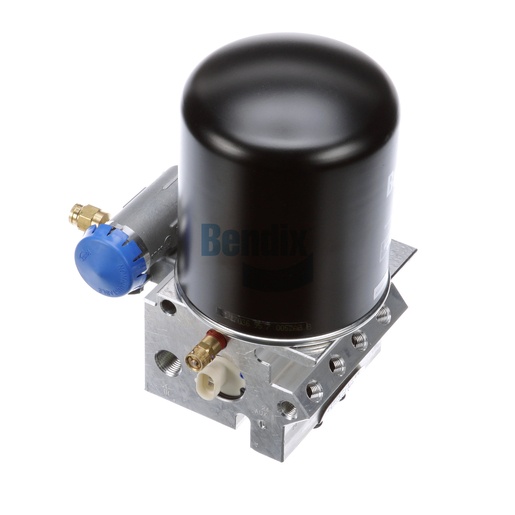

The Bendix Air Dryer is a crucial component designed to ensure that the air supplied to your vehicle's braking system is clean and dry. By removing moisture and contaminants from the air supply, this dryer helps prevent corrosion and wear in the braking system, significantly extending the life of brake components. Its efficient operation enhances overall braking performance and safety, making it an essential part of any commercial vehicle. Built with high-quality materials, this air dryer is designed for durability and reliability, even under demanding conditions. For all your Bendix OEM parts needs, Source One Parts Center is your trusted source for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Length
158.0 mm (6.22 in)
Maximum Inlet Temperature
160 °F (71 °C)
Width
245.0 mm (9.65 in)
Height
287.0 mm (11.3 in)
Governor Unloader Port
3/8 PTC (Straight)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.43 lb
