DESCRIPTION

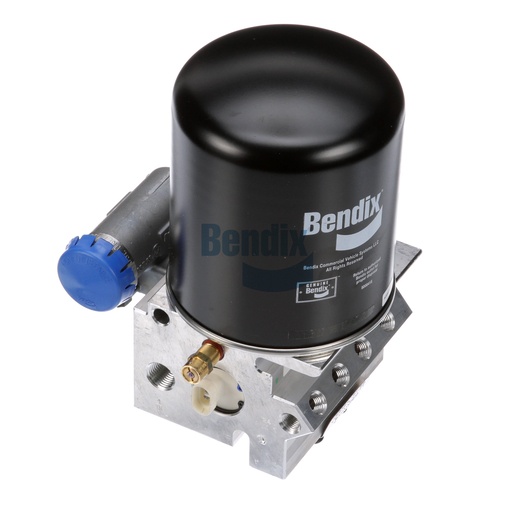

The Air Dryer from Bendix is an essential component for maintaining the efficiency and longevity of your air brake systems. Specifically designed to filter and dry compressed air, this unit helps prevent moisture and contaminants from damaging your braking components, ensuring optimal performance. The air dryer features a stand-alone design, making it easy to install and integrate with your existing systems. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, this air dryer is engineered for reliable operation under various conditions, enhancing the overall safety of your vehicle. By investing in this essential component, you improve the durability and functionality of your braking system. Choose Source One Parts Center for your genuine Bendix OEM parts, where quality meets exceptional service for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
AUX 1 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 2 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.65 lb
