DESCRIPTION

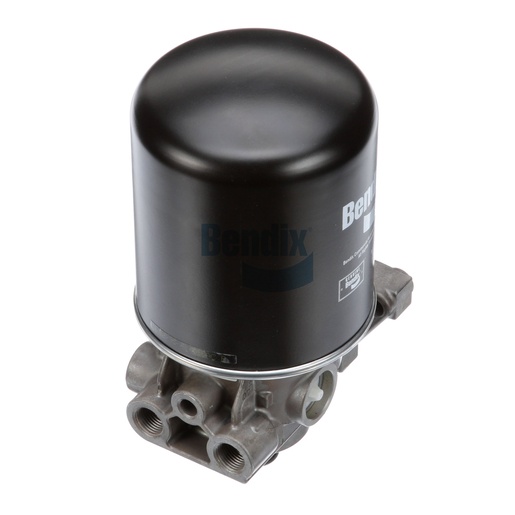

The Air Dryer from Bendix is engineered to enhance the efficiency and reliability of your commercial vehicle's air system. Designed for stand-alone applications, this air dryer features a robust construction that effectively removes moisture and contaminants from the compressed air system, ensuring optimal performance of air brake systems and other pneumatic components. With a maximum inlet temperature of 150 °F and an operating range down to -40 °F, this unit is capable of functioning in extreme conditions, making it ideal for heavy-duty truck applications. Its soft seat purge valve allows for precise control of the purge process, reducing air loss and improving overall system efficiency. Additionally, the air dryer's compact design facilitates easy installation and maintenance, providing peace of mind for fleet operators. Choosing genuine Bendix OEM parts from Source One Parts Center ensures you receive the highest quality components designed specifically for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Width
142.0 mm (5.59 in)
Length
146.0 mm (5.75 in)
Maximum Inlet Temperature
150 °F (66 °C)
Height
284.0 mm (11.18 in)
Harmonized System (HS) Code
842139
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
9.66 lb
