$3,099.95
$3,719.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

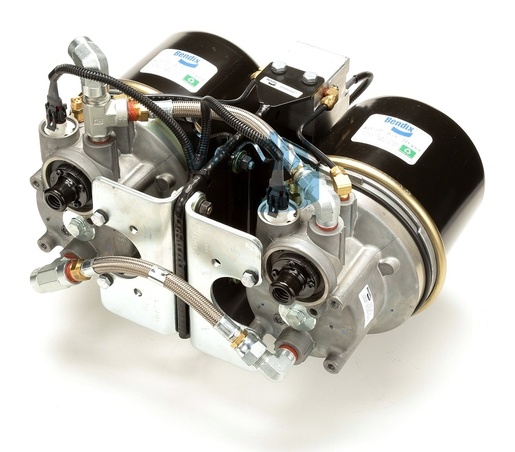

The Bendix Air Dryer Module is an integral part of maintaining optimal air quality within your vehicle’s brake system. This module is designed with advanced technology to effectively remove moisture and contaminants from the compressed air, ensuring that your braking system functions at peak efficiency. Weighing 40.4 kg, it offers robust performance tailored for heavy-duty applications. Its compatibility with Bendix systems makes it a reliable choice for fleet operators looking to enhance the longevity and reliability of their vehicles. For superior quality and genuine OEM parts like this air dryer module, Source One Parts Center is your go-to source for all Bendix components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.30 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Supply Port
1/2-14 NPT x 1/2-14 NPT (90° Elbow)
PRI Delivery (Reservoir) Port
1/2-14 NPT x 1/2-14 NPT (Male Branch Tee)
Governor Control Port
1/8-27 NPT
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IP / AD-IP (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Heater Connector Color
White
Mounting
Ø.675 IN (2x) / .675 IN X 1.069 IN (2x)
Weight
89 lb
