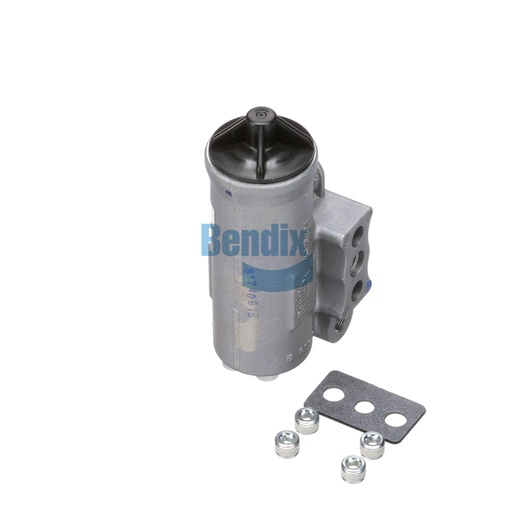

275491R
Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is critical for maintaining proper air pressure levels in your vehicle's braking system. This valve features an adjustable design that allows for precise pressure control, ensuring optimal performance and safety during operation. With a weather-resistant construction, it is built to endure the harsh conditions often faced by commercial vehicles, providing reliable functionality in all environments. The governor valve helps prevent over-pressurization, safeguarding your air brake system against potential failures. By integrating this essential component into your system, you can enhance the overall effectiveness of your braking capabilities. For the best in genuine Bendix parts, Source One Parts Center is your trusted source, providing quality you can rely on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
100 PSI
Cut-out Pressure
120 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
