DESCRIPTION

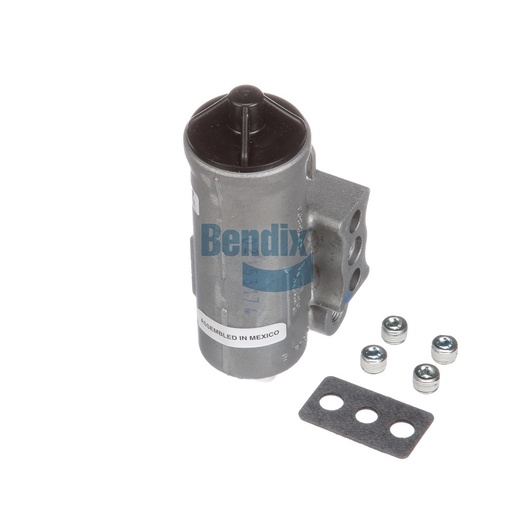

The Governor Valve by Bendix is an essential component in the air treatment system of your commercial vehicle, ensuring that air pressure is regulated effectively for optimal braking performance. This valve plays a crucial role in controlling the air supply to the brakes, preventing over-pressurization that could lead to brake failure. Weighing just 0.5 kg, this lightweight yet durable valve is designed to function in various demanding conditions, making it a reliable choice for fleet operations. Its precise engineering ensures that the braking system performs efficiently, enhancing safety on the road. By choosing the Bendix Governor Valve, you are investing in the reliability and effectiveness of your vehicle's braking system. Source One Parts Center is your best option for purchasing genuine Bendix OEM parts, guaranteeing you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
62.5 mm (2.46 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.06 lb
