275707R
Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

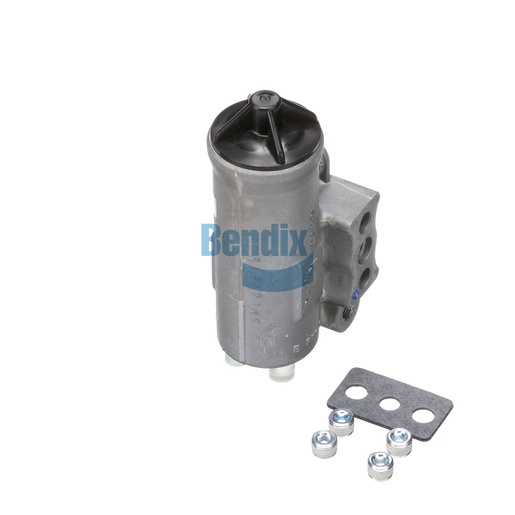

The Governor Valve by Bendix plays a pivotal role in regulating air pressure within your vehicle's braking system. This valve features a cut-in pressure of 105 PSI and a cut-out pressure of 125 PSI, ensuring that your air system maintains optimal performance under all conditions. With a maximum operating temperature of 200 °F and constructed to withstand the harshest environments, this governor valve is built for durability and reliability. Its compact size and lightweight design (1.08 lbs) make it easy to install, while the adjustable settings allow for precise control tailored to your specific needs. For fleet operators, maintaining reliable braking performance is critical, and the Bendix Governor Valve provides that assurance. Choose Source One Parts Center for all your genuine Bendix OEM parts to ensure your commercial vehicles are equipped with the best components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
