$79.95
$95.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

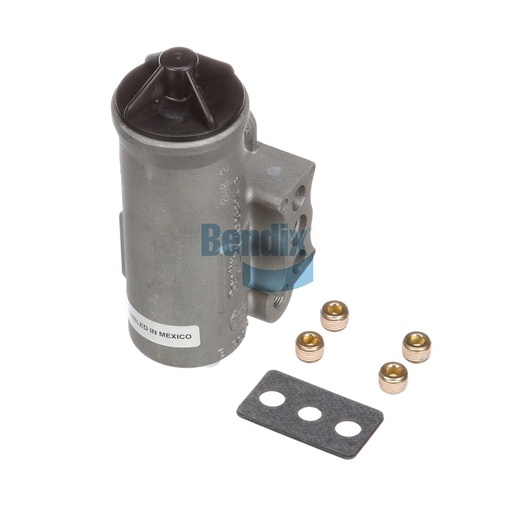

The Governor Valve from Bendix is an essential component for maintaining optimal air pressure in your vehicle's braking system. Designed for air treatment, this valve is engineered to adapt to varying pressure conditions, ensuring that your brakes operate effectively under different loads. With a compact size and durable construction, the governor valve is easy to install and contributes to the overall efficiency of the air brake system. By regulating air supply, it enhances braking performance, ensuring safety on the road. Trust Source One Parts Center for genuine Bendix OEM parts, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
125 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
62.5 mm (2.46 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.09 lb
