284358R

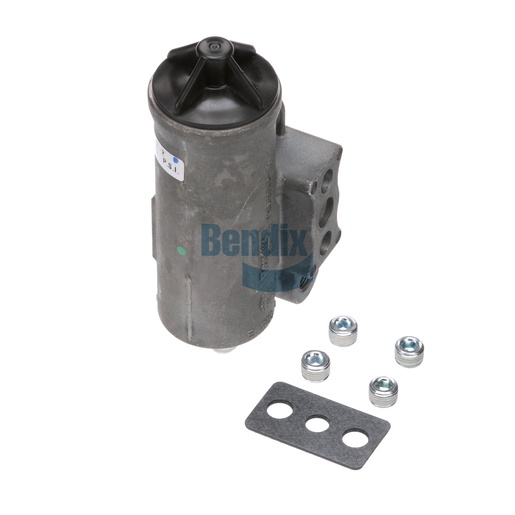

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an essential component for regulating the air pressure in commercial vehicle braking systems. Designed for durability, this valve ensures that the air supply is maintained at optimal levels, enhancing the overall efficiency of the braking system. It features adjustable settings, allowing for precise control of the cut-in and cut-out pressures, which is crucial for the safe operation of heavy-duty vehicles. With a maximum operating temperature of 250°F and a minimum of -40°F, it is built to perform reliably in extreme conditions. The governor valve’s innovative design minimizes air loss, contributing to fuel efficiency and reducing wear on the air brake system. For those seeking high-quality parts for their commercial vehicles, Source One Parts Center is the premier choice for authentic Bendix OEM components, ensuring optimal performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
