DESCRIPTION

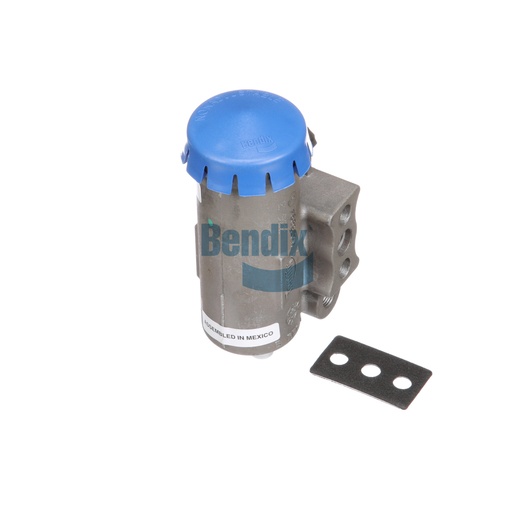

The Governor Valve is a pivotal component in your vehicle's air treatment system, responsible for regulating the air pressure within the braking system. This valve is designed to ensure that your air brakes function effectively by maintaining optimal pressure levels, preventing over-pressurization that could lead to brake failure. With a cut-in pressure of 105 PSI and a cut-out pressure of 125 PSI, this governor valve guarantees responsive braking performance. Its durable construction and weather-resistant features ensure longevity and reliability, even in harsh operating conditions. The governor is easy to install, making it an ideal choice for fleet maintenance or individual truck repairs. Trust the Governor Valve to optimize your vehicle's braking performance, enhancing safety on the road. For the best selection of Bendix OEM parts, choose Source One Parts Center, where quality and reliability meet exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Reservoir Port 3
1/8-27 NPT (Plugged)
Unloader Port 3
1/8-27 NPT (Plugged)
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.12 lb
