DESCRIPTION

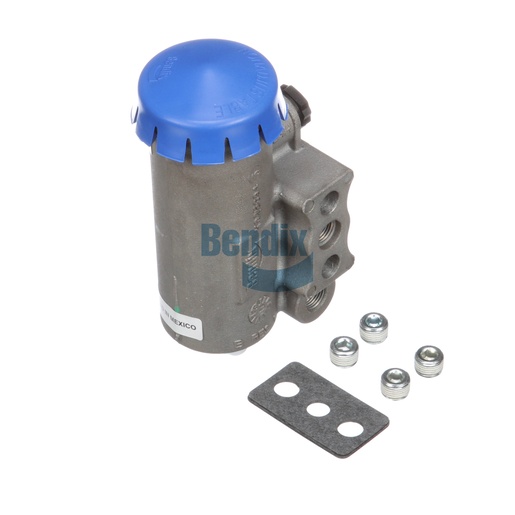

The Bendix Governor Valve plays a crucial role in maintaining optimal air pressure in your truck's braking system, ensuring safe and reliable operation. This valve is designed to regulate the air supply, preventing over-pressurization while allowing for efficient brake operation. Its compact design and robust construction ensure durability, making it suitable for various heavy-duty applications. Weighing only 0.5 kg, it is lightweight yet capable of withstanding the high demands of commercial trucking. By installing a genuine Bendix Governor Valve, you enhance the overall safety and efficiency of your vehicle. Source One Parts Center is the best place to purchase authentic Bendix OEM parts, ensuring your truck’s braking system operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Cut-in Pressure
105 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
125 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
65.5 mm (2.58 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
