$21.95
$26.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

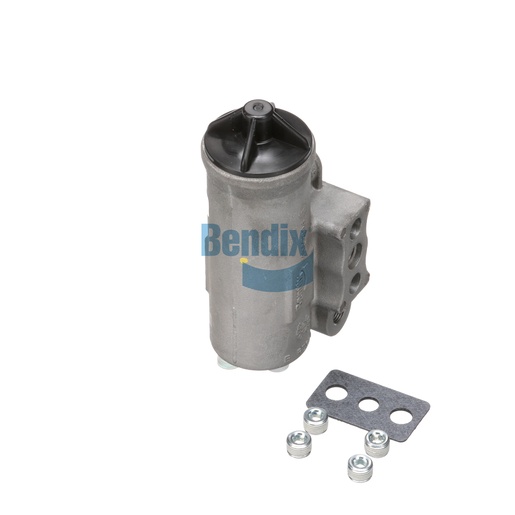

The Governor Valve from Bendix is a crucial component for maintaining optimal air pressure within your commercial vehicle's braking system. Designed to ensure a consistent supply of air to the brake system, this valve features adjustable cut-in and cut-out pressures, allowing for precise control over the air supply. With a cut-in pressure of 100 PSI and a cut-out pressure of 120 PSI, it effectively manages the air flow, enhancing the overall safety and performance of your vehicle. The valve is built from high-quality materials, ensuring durability in tough operating conditions, withstanding temperatures ranging from -40°F to 200°F. This governor valve is easy to install and compatible with a variety of commercial truck models, making it a versatile choice for fleet maintenance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination for reliability and quality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
100 PSI
Cut-out Pressure
120 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.12 lb
