OR284358

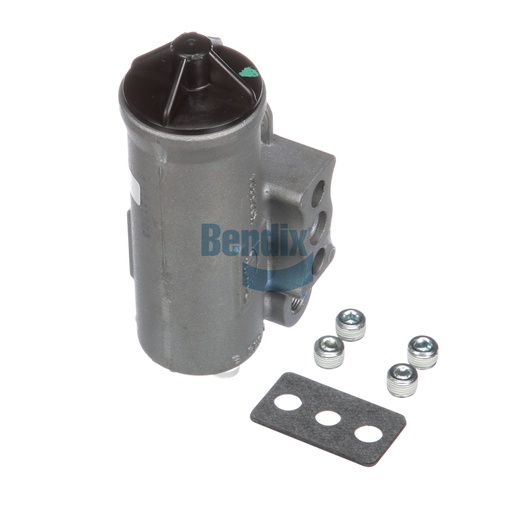

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an essential component for maintaining the efficiency of your vehicle's air system. Designed to regulate air pressure effectively, this valve helps prevent over-pressurization and ensures that your braking system operates smoothly. Its compact design and robust construction make it suitable for heavy-duty commercial applications, delivering reliable performance even in challenging conditions. The governor valve is easy to install, ensuring minimal downtime for maintenance and repairs. By investing in Bendix, you are prioritizing quality and safety for your vehicle. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you have the best components for your air system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.15 lb
