$349.95
$419.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

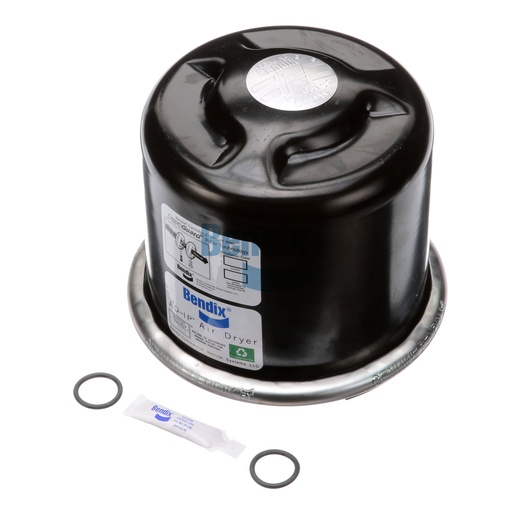

The Air Dryer Cartridge Kit from Bendix is engineered to significantly enhance the performance and reliability of your commercial vehicle's air system. This spin-on cartridge utilizes advanced PuraGuard technology and coalescing desiccant to effectively remove moisture and contaminants from the air, ensuring that your braking system operates efficiently and safely. With a maximum inlet temperature of 160°F and a robust design capable of withstanding pressures up to 150 PSI, this air dryer cartridge is built to perform in the most demanding conditions. Additionally, its easy installation process allows for quick replacements, minimizing downtime and keeping your fleet on the road. The cartridge is specifically designed with a cautionary note to avoid mixing with standard cartridges, ensuring optimal functionality. At Source One Parts Center, you can trust that you’re getting genuine Bendix OEM parts, designed specifically for your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-129: Desiccant Cartridge Kit - Air Dryer
Cartridge Thread
1 1/4-7 UNC-2B
Maximum Operating Pressure
150 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
188.0 mm (7.4 in)
Height
213.6 mm (8.41 in)
Width
213.6 mm (8.41 in)
Harmonized System (HS) Code
842199
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Country of Origin
Mexico
Desiccant
New
Cartridge Type
PuraGuard (Coalescing)
Cartridge Style
Spin-On
Weight
16.32 lb
