This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

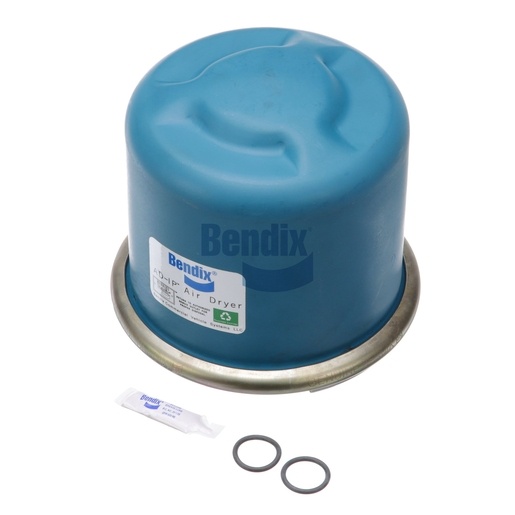

The Bendix air dryer cartridge kit is a vital component of any commercial vehicle's air treatment system, ensuring the air supply remains clean and moisture-free. This spin-on cartridge design simplifies installation and maintenance, making it user-friendly for fleet operators. With a maximum operating pressure of 150 PSI and a temperature range of -40°F to 160°F, this cartridge maintains performance under various conditions. The advanced desiccant technology prevents moisture from entering the air system, thereby protecting critical brake components from corrosion and wear. This not only enhances braking efficiency but also prolongs the lifespan of the vehicle's air system. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering high-quality products that meet the rigorous demands of commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-129: Desiccant Cartridge Kit - Air Dryer
Cartridge Thread
1 1/4-7 UNC-2B
Maximum Operating Pressure
150 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
188.0 mm (7.4 in)
Height
213.6 mm (8.41 in)
Width
213.6 mm (8.41 in)
Harmonized System (HS) Code
842139,842199
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Country of Origin
Mexico
Desiccant
New
Cartridge Style
Spin-On
Cartridge Type
Standard
Weight
16.09 lb
