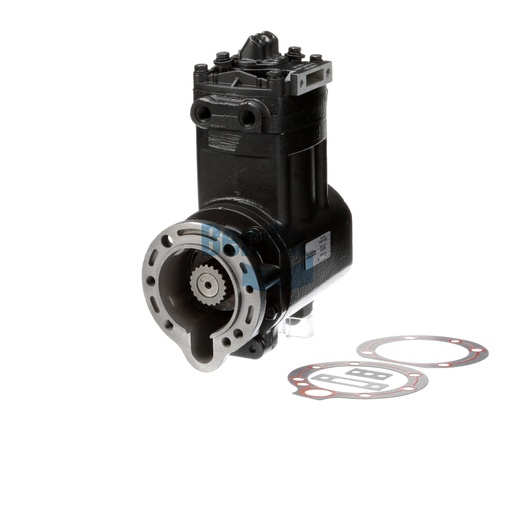

3049186X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Compressor is a vital component for air brake systems in commercial vehicles, ensuring reliable air delivery for optimal braking performance. Designed for heavy-duty applications, this compressor features a robust construction and a water-cooled design, enhancing its efficiency and longevity. With a bore size of 92.1 mm, it delivers a displacement of 13.2 CFM at 1250 RPM, meeting the demands of high-performance vehicles. The compressor's threaded air inlet and discharge ports facilitate easy installation, making it a practical choice for fleet maintenance. For those seeking genuine Bendix parts, Source One Parts Center is your trusted source for high-quality components that keep your commercial vehicle operating safely and efficiently.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
13.2 CFM
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Lubrication
Base Oil Feed
Engine Manufacturer
Cummins
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Compressor Manufacturer
Holset
Engine Model
L10 / N14
Air Inlet Port
Left (Threaded)
Governor Included
No
Discharge Air Port
Rear (Threaded)
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Weight
35.98 lb
