This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

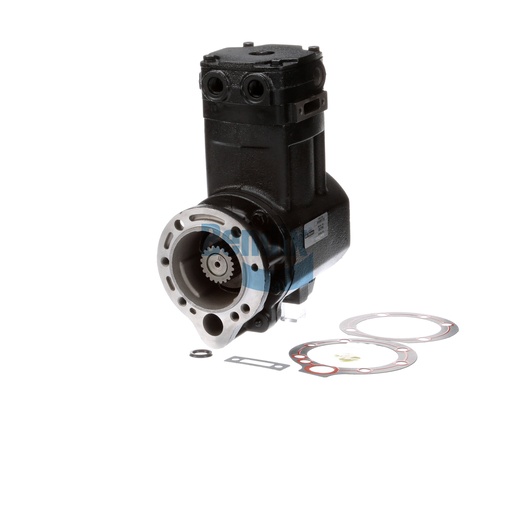

The Compressor from Bendix is engineered to provide robust air pressure for your vehicle's braking systems, ensuring optimal performance and safety. This high-quality compressor is suitable for various commercial vehicles, delivering consistent air supply under demanding conditions. With a net weight of 18.5 kg, it is built for heavy-duty applications, offering reliability and durability. Its innovative design allows for straightforward installation, making it a preferred choice among fleet operators. For dependable and genuine Bendix parts, Source One Parts Center is your go-to source, providing OEM components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
13.2 CFM
Thru-Drive Shaft Connector
3-Prong
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Coolant Inlet Port
Front
Discharge Air Port
Front
Compressor Manufacturer
Holset
Engine Model
L10 / N14
Governor Included
No
Air Inlet Port
Right
Compressor Drive Type
Spline
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Weight
40.79 lb
