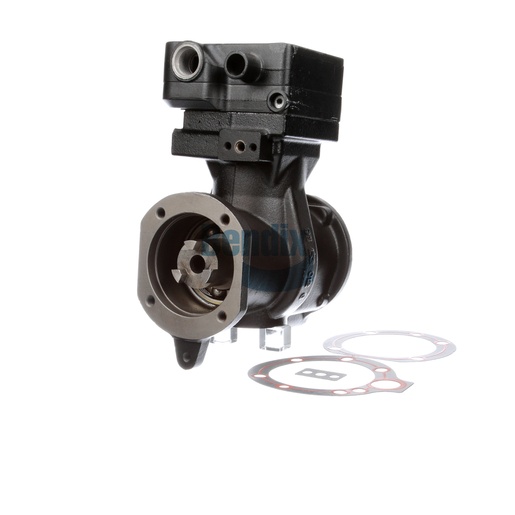

9111535200X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your air brake system with the Bendix compressor, designed to deliver exceptional performance and reliability for your commercial vehicle. This water-cooled compressor, manufactured by Wabco, features a robust bore size of 85 mm and a displacement of 18.7 CFM at 1250 RPM, ensuring efficient air delivery for superior braking force. With a net weight of 15.7 kg (34.59 lb), this compressor is built to withstand the rigors of heavy-duty applications. Its engine oil feed lubrication system and precise mounting flange location facilitate easy installation and maintenance. The compressor also includes multiple ports for seamless integration, making it a versatile choice for various engine models, including Cummins. For genuine Bendix OEM parts that you can trust, choose Source One Parts Center, your go-to destination for high-quality commercial vehicle components.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Width
150.0 mm (5.91 in)
Displacement (CFM at 1250 RPM)
18.7 CFM
Length
270.0 mm (10.63 in)
Thru-Drive Shaft Connector
3-Prong
Coolant Inlet Port
3/4-16 Straight Thread O-ring Port
Height
300.0 mm (11.81 in)
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
85 mm
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Engine Model
L / M / N14
Governor Port
M10 x 1.0 Straight Thread O-ring Port
Discharge Air Port
M27 x 2.0 Straight Thread O-ring Port
Governor Included
No
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Compressor Manufacturer
Wabco
Cooling
Water-Cooled
Weight
34.59 lb
