FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

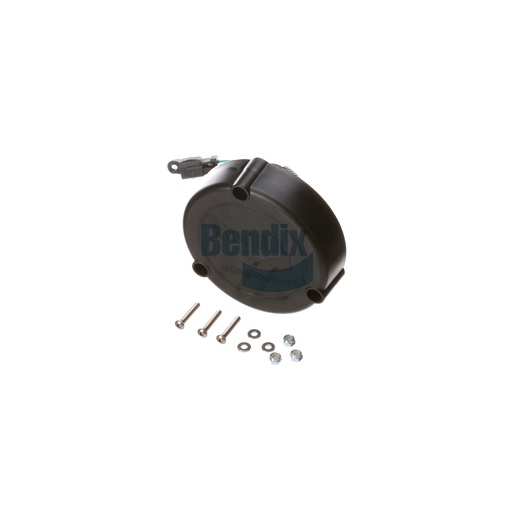

The Bendix Side Radar Assembly is a cutting-edge component designed to enhance safety in commercial vehicles by providing advanced driver assistance features. This radar system is engineered for precision and reliability, detecting obstacles and hazards in the vehicle's path, and helping to prevent collisions. With a compact design and robust construction, it is suitable for various applications, ensuring that your fleet operates safely in diverse driving conditions. The radar assembly is integral to modern safety systems, contributing to a reduction in accidents and improving driver confidence. Source One Parts Center is the go-to destination for genuine Bendix OEM parts, offering quality solutions for enhancing vehicle safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-011: Sensor Assembly - Side, Collision Avoidance System
Height
139.7 mm (5.5 in)
Width
177.8 mm (7.0 in)
Maximum Operating Temperature
185 °F (85 °C)
Length
203.0 mm (7.99 in)
Harmonized System (HS) Code
852610
CAN Baud Rate
AutoBaud
Application
BlindSpotter 2
Connector
Deutsch DT Series 2-Way Sealed Connector (Female)
Connector 2
Deutsch DT Series 6-Way Sealed Connector (Female)
Product Type
SLR20
Software Version
SW00293B
Country of Origin
United States
Weight
1.75 lb
