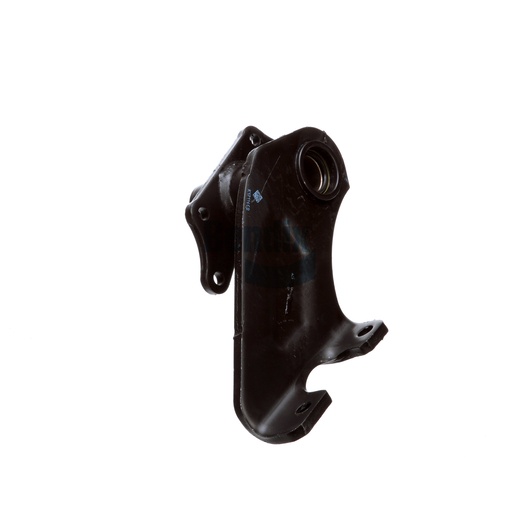

K121146N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a key component designed for foundation drum brakes, providing robust support for air chambers and camshafts in commercial vehicles. With a scalloped arm style and sturdy design, this assembly is crafted to enhance the efficiency and safety of your vehicle's braking system. Manufactured in the United States, it meets high standards for quality and durability, ensuring long-lasting performance in demanding environments. Weighing approximately 6.4 kg, this bracket is designed for easy installation while maintaining a strong and reliable connection. By choosing this assembly, fleet operators can enhance their vehicle's braking capabilities, contributing to overall road safety. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice, offering unmatched quality and service for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
220.0 mm (8.66 in)
Camshaft Bracket Angle
278° CCW
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
14.15 lb
