$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

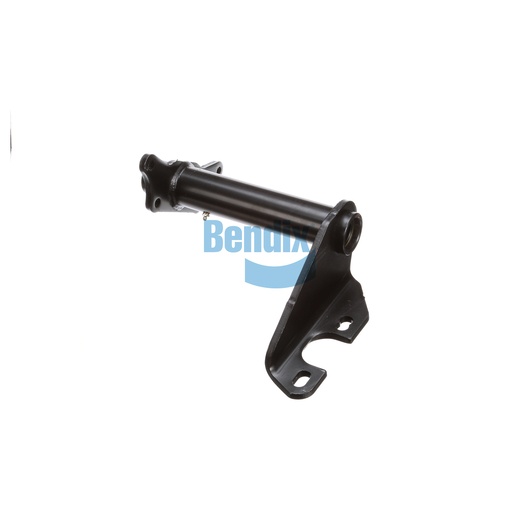

Bendix's Bracket Assembly is a critical component for maintaining the integrity of your foundation drum brakes. This robust bracket is engineered for strength and stability, supporting the air chamber and camshaft effectively. With its full-arm style and precise camshaft bracket angle, this assembly guarantees optimal performance and reliability under varying load conditions. The lightweight design, weighing only 7.2 kg, facilitates easier installation and replacement, making it a preferred choice for fleet maintenance. Constructed in the USA, this bracket meets all necessary industry standards, ensuring long-lasting durability. It is the ideal solution for mechanics looking to enhance the braking system's functionality and safety. For top-quality Bendix OEM parts, look no further than Source One Parts Center, where we prioritize your commercial vehicle's performance and safety.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
394.0 mm (15.51 in)
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
15.9 lb
