$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

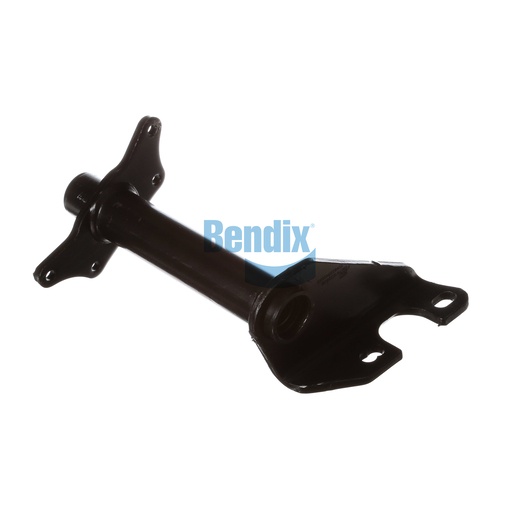

The Bracket Assembly by Bendix is a crucial component designed for the effective functioning of foundation drum brakes in commercial vehicles. This assembly features a full arm style with a camshaft bracket angle of 56° CW, ensuring precise alignment and stability for the braking system. With a length of 15.50 inches and a robust build weighing 15.9 lbs, it is engineered to withstand the demanding conditions of heavy-duty applications. The assembly is made with high-quality materials, including nylon bushings, which provide excellent durability and resistance to wear. Its design includes a single gusset and is tailored for easy installation, making it an ideal choice for maintenance and upgrades. For reliable sourcing of genuine Bendix OEM parts, Source One Parts Center is the best destination, offering quality products that ensure your commercial vehicle operates at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
394.0 mm (15.51 in)
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
15.9 lb
