$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

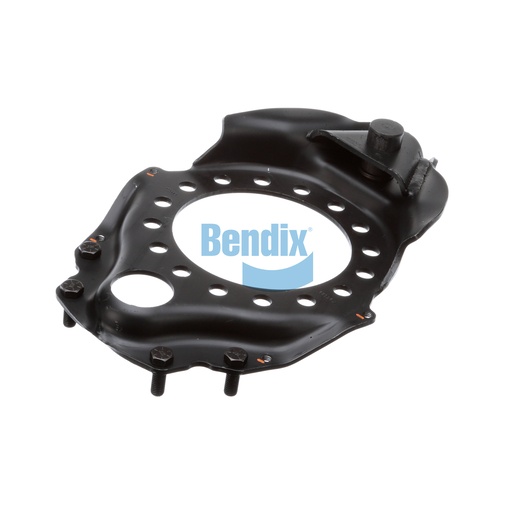

The Spider / Pin Assembly is a vital component of your Bendix drum brake system, designed to support the overall structure and ensure effective braking action. With high-quality materials and precise engineering, this assembly guarantees durability and reliability under heavy-duty conditions. Measuring 5.83 inches in length and 11.97 inches in width, it fits seamlessly into your braking system, facilitating optimal performance. Weighing 10.81 lbs, this component is engineered to withstand the rigors of commercial trucking, ensuring your vehicle operates safely and efficiently. By using this genuine Bendix part, you are making a commitment to enhance the performance and longevity of your braking system. For sourcing authentic Bendix OEM parts, Source One Parts Center is your best choice, providing a wide range of quality components to meet your needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
10.81 lb
