K140378N

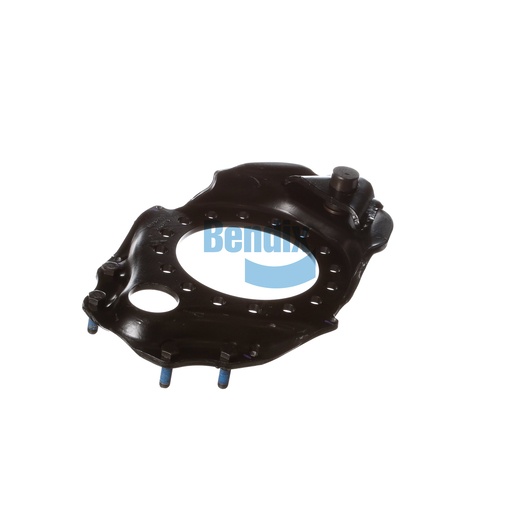

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a critical component of the foundation drum brake system, designed to provide effective support and alignment for brake shoes. Constructed from robust materials, this assembly is built to withstand the heavy demands of commercial vehicle operations. It features a unique design that allows for optimal engagement with other braking components, enhancing overall system performance. With a net weight of 7.0 kg, it offers the necessary strength to ensure reliable braking under various conditions. This assembly is essential for maintaining the integrity and efficiency of your braking system. Source One Parts Center is your best choice for genuine Bendix OEM parts, delivering quality components that ensure the safety and performance of your vehicle.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
15.4 lb
