KT1443EBA230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

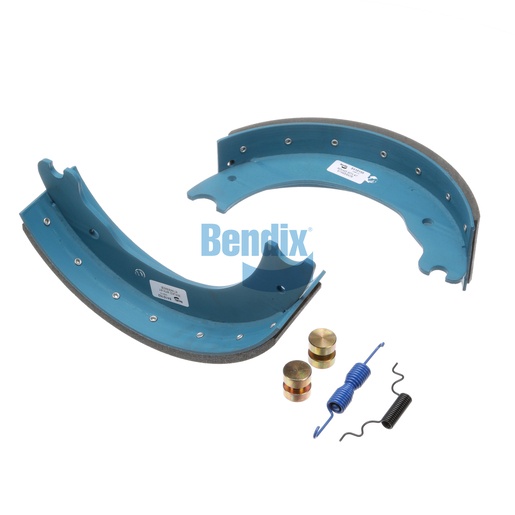

The Brake Shoe Kit from Bendix is engineered to deliver exceptional braking performance for commercial vehicles. Crafted with high-quality stamped steel and treated with a PermaGuard coating, these brake shoes are designed for durability and efficiency. The kit includes two shoes that accommodate a drum size of Ø 15 inches with a width of 4 inches, making it suitable for a range of truck applications. Featuring Bendix Advanced friction material, this kit provides superior stopping power while reducing wear and tear on your braking system. With 14 rivets securing each shoe, you can trust that this kit will perform reliably under heavy loads. Additionally, the kit comes with all necessary hardware for an easy and efficient installation process. When you shop at Source One Parts Center, you can be confident that you're purchasing genuine Bendix OEM parts, ensuring your vehicle's safety and performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
14
FMSI
1443
Shoe Quantity
2
GAWR
23K
Shoe Width
4.0 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
18.63 lb
