FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

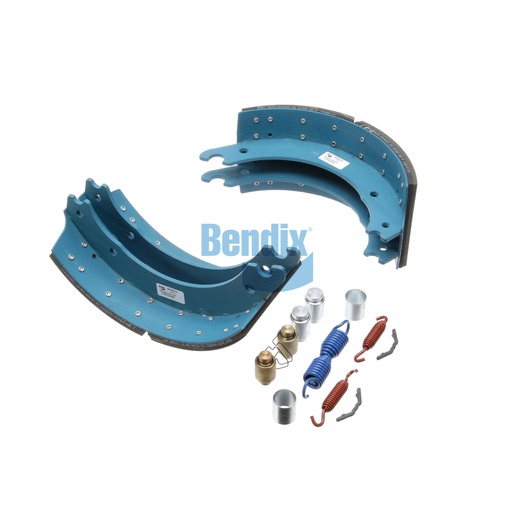

Upgrade your commercial vehicle's braking system with the Bendix Brake Shoe Kit, designed for foundation drum brakes. This robust kit includes two stamped steel shoes, expertly coated with PermaGuard for enhanced corrosion resistance and longevity. With a shoe width of 7.0 inches and a drum size of 16.5 inches, this kit is engineered for optimal performance, accommodating a Gross Axle Weight Rating (GAWR) of up to 23,000 pounds. The included hardware ensures a hassle-free installation process, allowing you to get back on the road with confidence. Weighing 15.9 kg, this kit provides the strength and reliability you need for demanding driving conditions. Enhance your vehicle's braking efficiency and safety with this premium Bendix product. Source One Parts Center is your go-to source for authentic Bendix OEM parts, ensuring that your vehicle performs at its best.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
34.99 lb
