FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

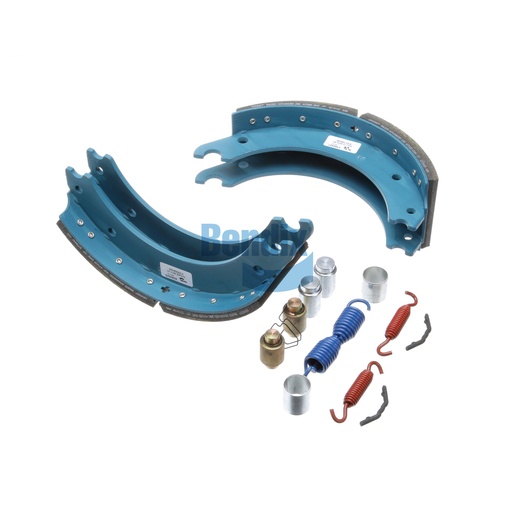

Enhance the braking system of your commercial vehicle with the Bendix Brake Shoe Kit, designed for optimal performance and safety. Featuring advanced friction material and a durable stamped steel design, these shoes are built to last and provide reliable stopping power. With a drum size of 15 inches and a GAWR of 20K, this kit is perfect for heavy-duty applications. The included hardware ensures easy installation, making it an ideal choice for fleet maintenance. Trust Source One Parts Center for genuine Bendix OEM parts that deliver quality performance on the road.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Shoe Quantity
2
GAWR
20K
FMSI
4703
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Cautionary Note(s)
BA202R Shoes are approved for vehicles up to 52K lbs GVWR
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
28.96 lb
