SB4707QBA231
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

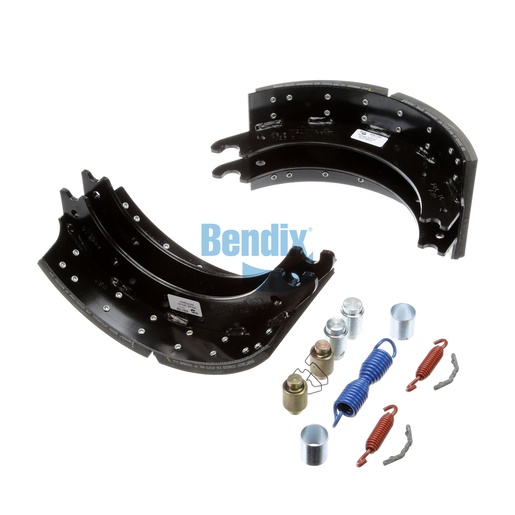

The Bendix Brake Shoe Kit is a critical component for foundation drum brakes, providing enhanced safety and performance for your commercial vehicle. This kit features two durable stamped steel shoes, treated with E-Coat for superior resistance to wear and corrosion. With a Gross Axle Weight Rating (GAWR) of 23K, this kit is suitable for heavy-duty applications, ensuring reliable braking power. The advanced friction material offers improved stopping distance and control, while the included hardware simplifies installation. Choose Source One Parts Center for your Bendix parts, where you can find the best selection of genuine OEM components tailored for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA231 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
38.85 lb
