SB4726E2420
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

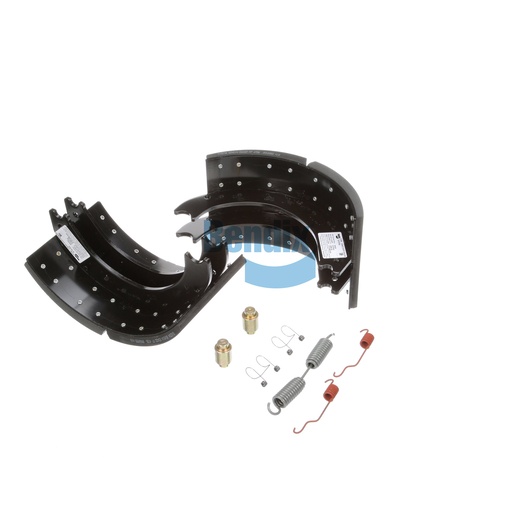

The Bendix Brake Shoe Kit is meticulously engineered to ensure optimal performance and safety for your commercial vehicle's braking system. This kit includes two robust brake shoes made from stamped steel, equipped with E-Coat finish to resist corrosion and extend their service life. Weighing 20.3 kg, these shoes are designed for high-stress applications, ensuring reliable stopping power when you need it most. The kit comes with all necessary hardware for easy installation, making it a convenient solution for fleet maintenance. Source One Parts Center is the best place to find genuine Bendix parts, providing you with quality components for your vehicle's braking system.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
32
FMSI
4726
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES420
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
44.84 lb
