811609N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

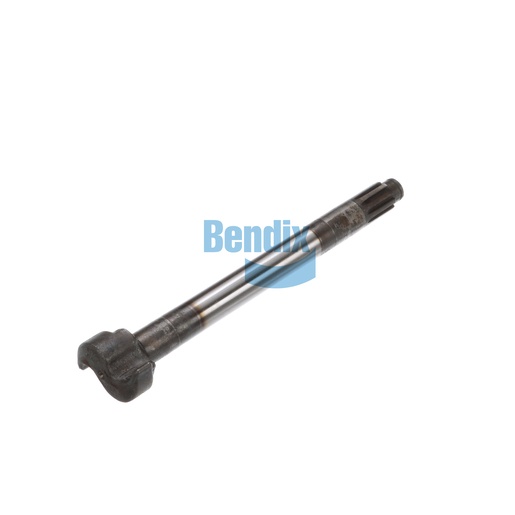

The Camshaft from Bendix is a crucial element in the braking system of commercial vehicles, designed to enhance braking performance and reliability. This camshaft features a clockwise rotation and is compatible with a 16.5-inch brake size, making it ideal for heavy-duty applications. With a robust construction that meets the highest industry standards, it ensures consistent and effective brake engagement. Weighing 6.4 kg, the camshaft is engineered for durability, capable of withstanding the rigorous demands of commercial transport. The precise fit and design contribute to optimal braking efficiency, ensuring that your vehicle performs safely and effectively under various conditions. Source One Parts Center is your best source for genuine Bendix OEM parts, guaranteeing quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
15.656
Camshaft Under Head Length [IN]
15.866
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14 lb
