$149.95
$179.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

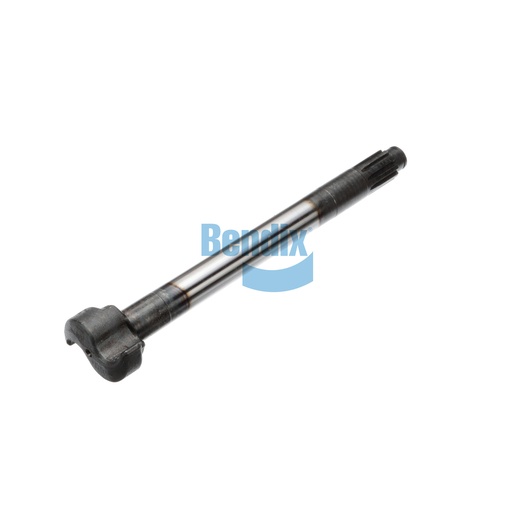

The Camshaft is a crucial component in the Bendix foundation drum brake system, responsible for converting the force from the brake actuator into the mechanical motion required to engage the brakes. With its precision design, this camshaft ensures reliable and efficient operation of your braking system, contributing significantly to the safety of your vehicle. Constructed from high-quality materials, it is built to withstand the demands of commercial vehicle operation, ensuring longevity and reliability. Investing in a genuine Bendix camshaft means enhanced performance and peace of mind. Source One Parts Center is your trusted source for genuine Bendix OEM parts, guaranteeing quality and reliability.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
15.875
Camshaft Under Head Length [IN]
16.085
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Axle Type
Drive
Brake Manufacturer
Eaton
Head Type
Style B - Extended Service
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
