$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

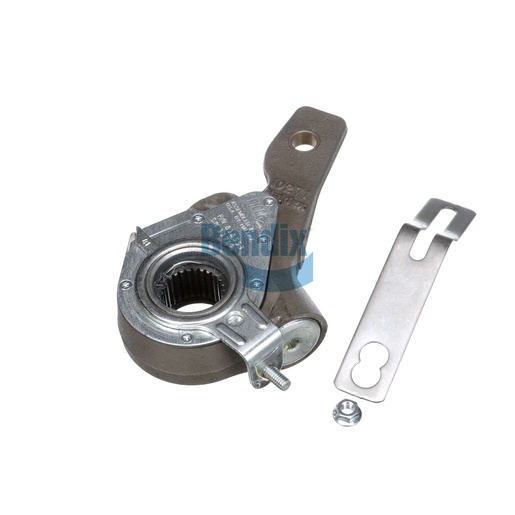

The Bendix Slack Adjuster Kit is designed to automate the adjustment of brake slack in heavy-duty vehicles, enhancing safety and performance. This kit is engineered to maintain consistent braking performance by automatically compensating for brake shoe wear, thereby prolonging the life of your brake components. With a torque rating of 23,000 IN LBS and an arm length of 5.50 inches, it is built for durability and strength, ensuring reliable operation even in the toughest conditions. The kit is easy to install and compatible with various brake systems, making it a versatile choice for fleet operators. As an essential part of your vehicle’s braking system, the Slack Adjuster Kit ensures that you maintain optimal braking efficiency, providing peace of mind on the road. For authentic Bendix parts that guarantee performance and reliability, Source One Parts Center is your best choice.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .637 IN (Ø 16.2 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.12 lb
