810180

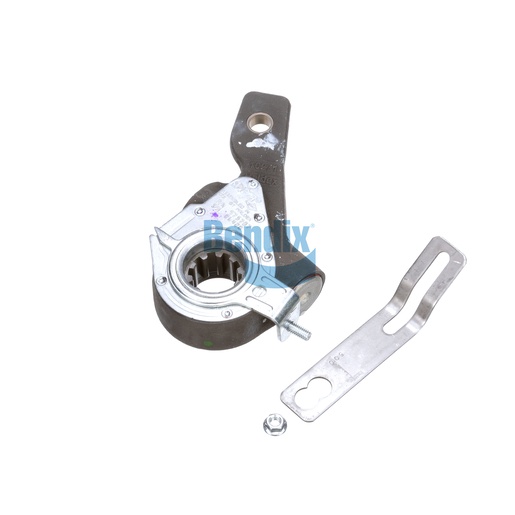

Slack Adjuster Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Slack Adjuster Kit from Bendix is designed to provide automatic adjustments to your braking system, ensuring optimal performance and safety. This kit helps maintain proper slack in the brake system, which is crucial for efficient braking and vehicle safety. With its durable construction, the Slack Adjuster Kit is built to withstand the harsh conditions of heavy-duty use, providing reliability and peace of mind. Its straightforward installation process allows for quick replacements, minimizing downtime for your fleet. This product not only enhances braking efficiency but also extends the lifespan of your brake components. For the best selection of authentic Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you receive high-quality components that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.99 lb
