$214.95
$257.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

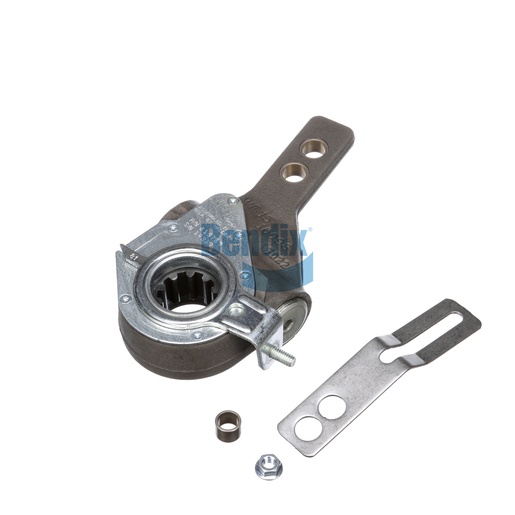

Experience enhanced braking efficiency with the Bendix Slack Adjuster Kit, designed for automatic slack adjusters in front and rear brake systems. This kit is essential for maintaining the correct brake shoe tension, ensuring that your brakes work effectively and consistently. Built to operate efficiently across a wide temperature range, from -40°F to 158°F, this slack adjuster kit offers a torque rating of 23,000 inch-pounds, making it perfect for heavy-duty applications. With its precise engineering and durable construction, it provides reliable adjustments, improving the overall braking performance of your vehicle. Weighing only 7.1 lbs, this kit is lightweight and easy to install. For quality Bendix OEM parts, look no further than Source One Parts Center, your best choice for reliable components that keep your fleet running smoothly.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Inclination Angle (Body Angle)
16°
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.00 IN
Arm Length 2
6.00 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .637 IN (Ø 16.2 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.1 lb
