817533

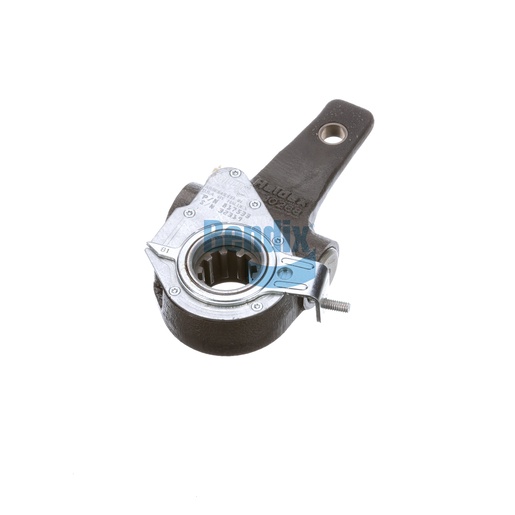

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a game-changer for maintaining optimal brake performance in commercial vehicles. Designed for automatic adjustment, this component ensures that your brakes are always in the correct position, reducing the risk of premature wear and enhancing safety. With a torque rating of 23,000 IN LBS and a self-setting mechanism, it provides consistent and reliable performance, making it ideal for heavy-duty applications. Its robust construction ensures durability, while the design allows for easy installation and maintenance. The slack adjuster is engineered to work seamlessly with your existing brake system, providing peace of mind that your vehicle will perform reliably in all conditions. At Source One Parts Center, we specialize in offering genuine Bendix OEM parts, ensuring you receive the best quality components for your truck's braking system.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Type
Slot
Anchor Bracket Style
Strap
Country of Origin
United States
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .637 IN (Ø 16.2 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.48 lb
