974294

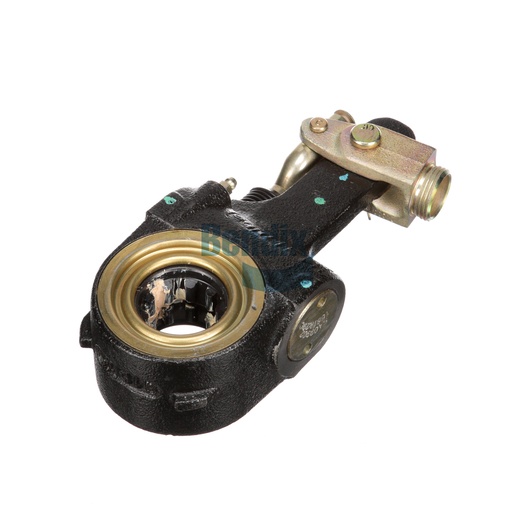

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is designed to maintain optimal brake performance by automatically adjusting to wear, ensuring your commercial vehicle remains safe and efficient. This part features a link style design with a torque rating of 20,000 IN LBS, capable of withstanding significant stress and delivering consistent performance. With an arm length of 5.50 inches and a maximum operating temperature of 158°F, it is built to perform under the toughest conditions. The slack adjuster's straight lube fitting allows for easy maintenance, ensuring that it can be serviced quickly and efficiently, thus minimizing downtime. Weighing 7.5 pounds, it is both sturdy and lightweight, making it suitable for various applications. Source One Parts Center is your best choice for purchasing genuine Bendix OEM parts, ensuring high-quality components that enhance the reliability of your braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Link Style
Arm Offset
No Offset
Lube Fitting Type
Straight
Country of Origin
United States
Lube Fitting Position
Upper Position (Arm)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.5 lb
