$204.95
$245.94
FINAL SALE. No returns or exchanges.

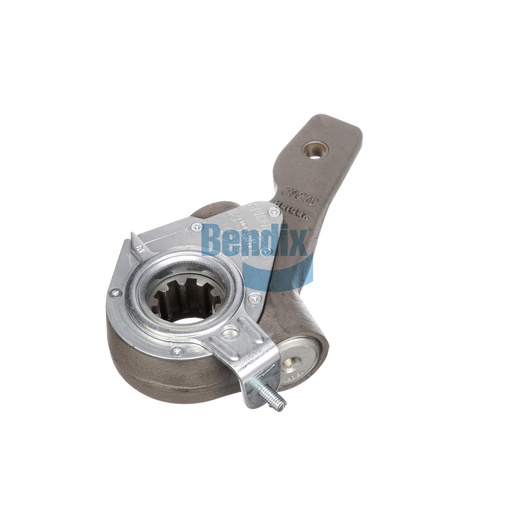

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The automatic slack adjuster is an essential component for maintaining optimal brake performance in commercial vehicles. Designed to automatically adjust the brake shoes as they wear, this part ensures consistent brake application, enhancing safety and performance. With a robust torque rating of 23,000 in-lbs and a maximum operating temperature of 158°F, it is built to withstand the rigors of the road. The slack adjuster's innovative design, featuring a single bend reference arm style and a 45° elbow lube fitting type, ensures easy installation and maintenance. This part is crucial for reducing brake wear and improving overall vehicle efficiency, making it an invaluable addition to any fleet management strategy. When purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the most reliable choice, offering high-quality replacements that guarantee optimal performance for your commercial vehicles.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Lube Fitting Type
45° Elbow
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.6 lb
